Brand: Ruikarhop
Features:
- 【Package】40pcs(Blue),40pcs(Red),40pcs(Yellow).

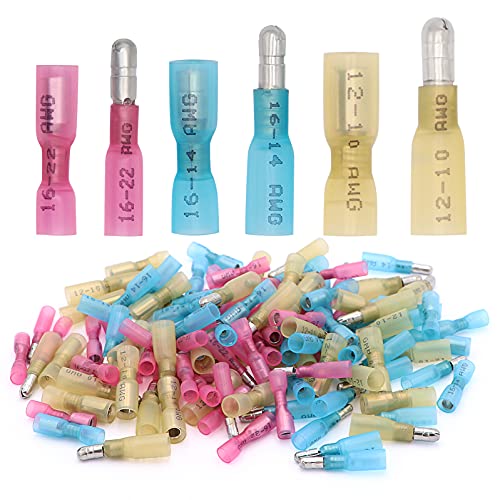

- 【Size】12-10AWG(Yellow),14-16AWG(Blue),18-22AWG(Red).

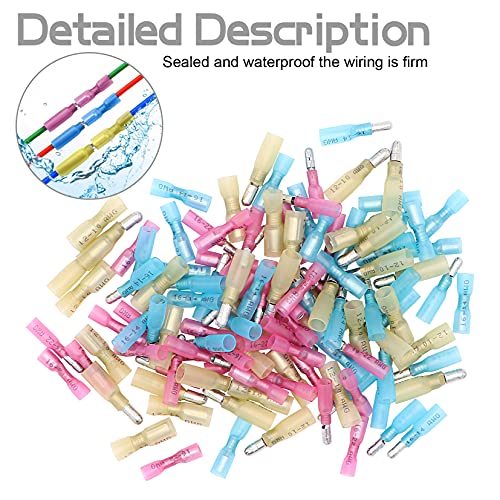

- 【Function】Heat Shrink Bullet terminals protect splices from water and corrosion.Providing strain relief and against vibration in rugged environments，which excellently insulates and protects electronic connections.

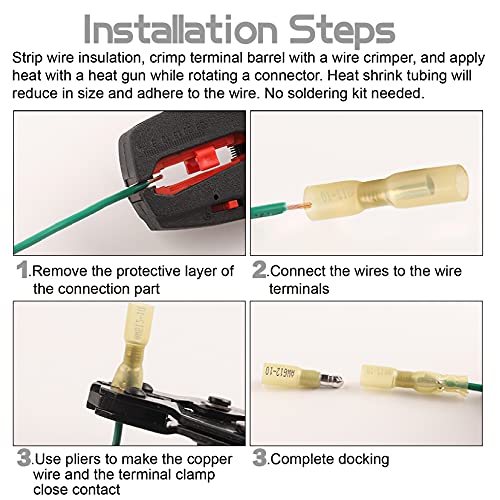

- 【Easy】Strip wire insulation, crimp terminal barrel with a wire crimper, and apply heat with a heat gun while rotating a connector. Heat shrink tubing will reduce in size and adhere to the wire. No soldering kit needed. Start making secure and durable connections in seconds.
- 【Application】Insulated Female / Male Bullet Terminals Connector, excellent splice for boat, vehicle, home improvement or scientific project, and many other applications.
Part Number: LL0604
Details: Package Includes: 40 x Yellow Connectors:(20 male, 20 female) 40 x Blue Connectors:(20 male, 20 female) 40 x Red Connectors:(20 male, 20 female) Suitable wire: A.W.G.: 22-16, American Stud Size: #10, Wire range: 0.5-1.5mm², Max current=19A A.W.G.: 16-14, American Stud Size: #10, Wire range: 1.5-2.5mm², Max current=27A A.W.G.: 12-10, American Stud Size: #10, Wire range: 4-6mm², Max current=48A Temperature Rating: Operating temperature: -55 ℃ -125 ℃ Start shrink temperature: 80 ℃ Fully shrink temperature: 400 ℃ Steps for Usage: 1.Strip insulation of the wires to 10mm and insert them into splice barrel. 2.Crimp the metal part of the heat shrink fork connector by pliers. 3.Rotating the wire connector while heating.(Please Note: Please use heat gun or a mini blow torch for best results.) 4.Check waterproof quality connection.
Package Dimensions: 8.3 x 5.7 x 0.6 inches
