Brand: ROCKDIG
Features:

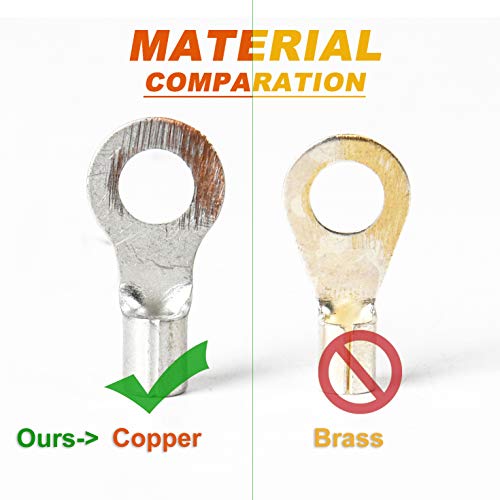

- Material: The non-insulated ring/fork terminals are made from 99.9% pure copper, the tin plated helps resist corrosion and it also makes them easy to solder.

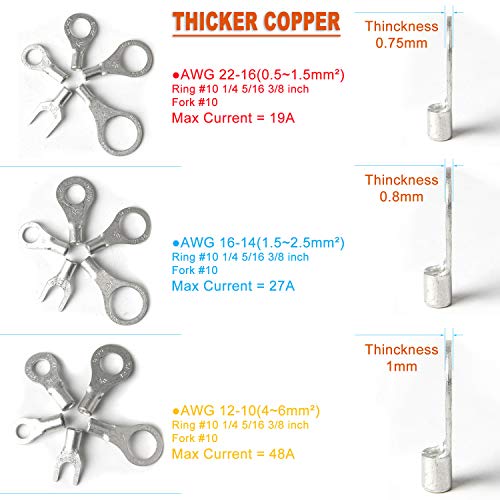

- Thickness: T=0.75mm for AWG 22-16 terminals; T=0.8mm for AWG 16-14 terminals; T=1.0mm for AWG 12-10 terminals;
- Current: 19A for AWG 22-16; 27A for AWG 16-14; 48A for AWG 12-10;

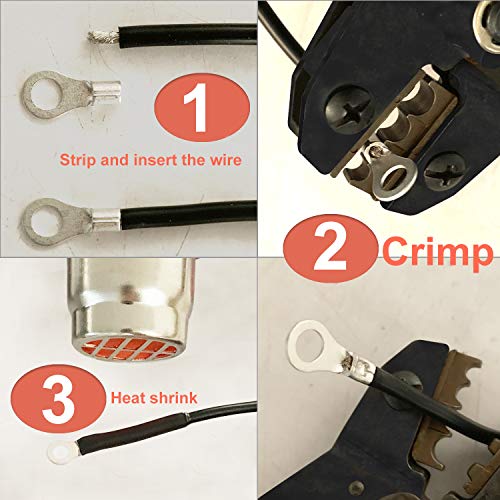

- To Use: Can be crimped with any standard low-cost crimping tool, and use heat shrink tubing to insulate to protect the connection.

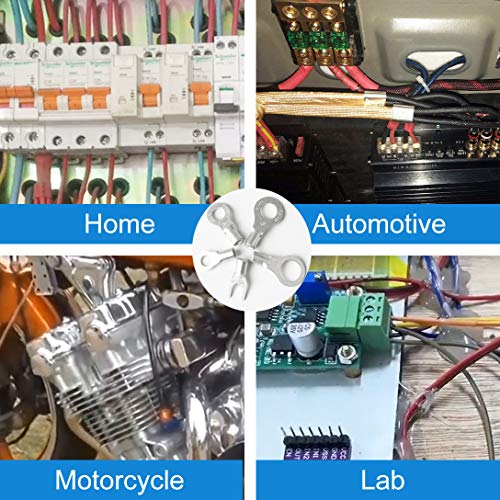

- Usage: Suitable for connecting mechanical relays or contactors to engines or other automotive circuits.
Part Number: KF260

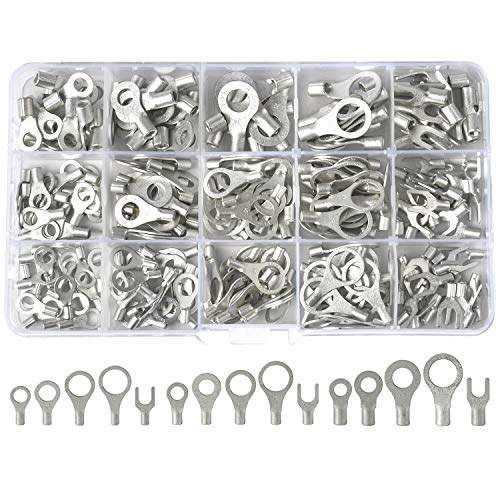

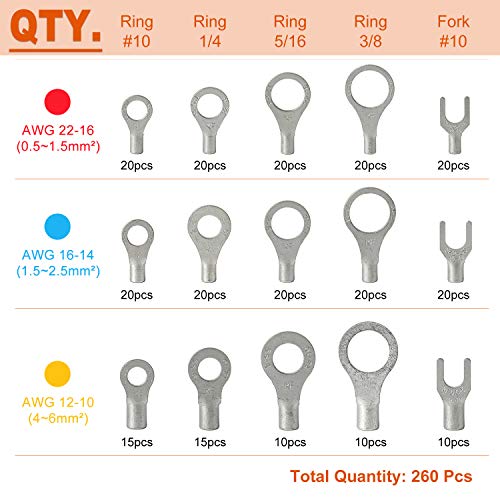

Details: The ring/fork terminals are used to attach wires to studs or posts, and come in a variety of types and sizes. Non-insulated ring terminals can be crimped or soldered and can be easily finished off with heat shrink tubing to insulate and protect the connection. Material: 99.9% pure copper; Finsh: Matte tin plated; Rated temperature: 221°F (105°C); Rated voltage: 600 volts. Package: RNB1.25-5(AWG 22-16 * Ring #10) --- 20pcs; RNB1.25-6(AWG 22-16 * Ring 1/4") --- 20pcs; RNB1.25-8(AWG 22-16 * Ring 5/16") --- 20pcs; RNB1.25-10(AWG 22-16 * Ring 3/8") --- 20pcs; SNB1.25-5(AWG 22-16 * Fork #10) --- 20pcs; RNB2-5(AWG 16-14 * Ring #10) --- 20pcs; RNB2-6(AWG 16-14 * Ring 1/4") --- 20pcs; RNB2-8(AWG 16-14 * Ring 5/16") --- 20pcs; RNB2-10(AWG 16-14 * Ring 3/8") --- 20pcs; SNB2-5(AWG 16-14 * Fork #10) --- 20pcs; RNB5.5-5(AWG 12-10 * Ring #10) --- 15pcs; RNB5.5-6(AWG 12-10 * Ring 1/4") --- 15pcs; RNB5.5-8(AWG 12-10 * Ring 5/16") --- 10pcs; RNB5.5-10(AWG 12-10 * Ring 3/8") --- 10pcs; SNB5.5-5(AWG 12-10 * Fork #10) --- 10pcs;Total: 260pcs.
EAN: 0778957851067
Package Dimensions: 7.8 x 4.9 x 1.1 inches
