Brand: MakerFocus
Color: 868/915MHz
Features:
- ★ Documents: Please get the link from the product description below

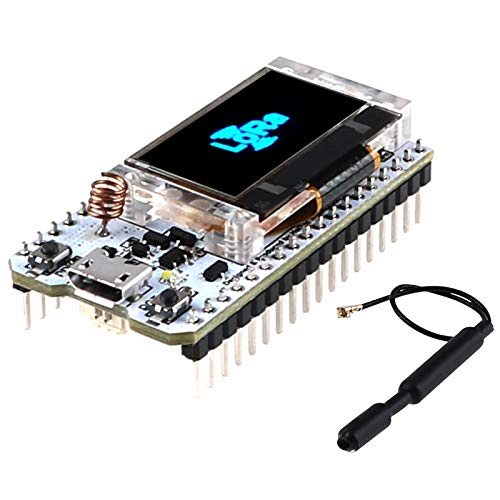

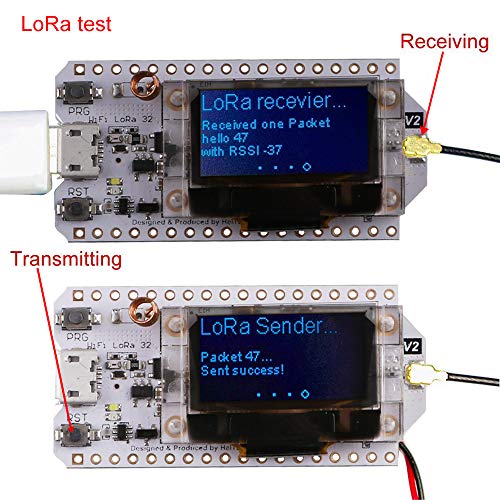

- ★Upgrade ESP32 lora development board with 868/915MHz antenna, it supports Sniffer, Station, softAP and W i- F i Direct modes. If you want to use the Lora feature, you need two esp32 lora modules. One is used to send messages and one is used to receive messages
- ★High reliability, transmission distance (measured open area communication distance 2.8Km); Receiver sensitivity up to - 139 dBm, UDP continues to throughput by 135 Mbps

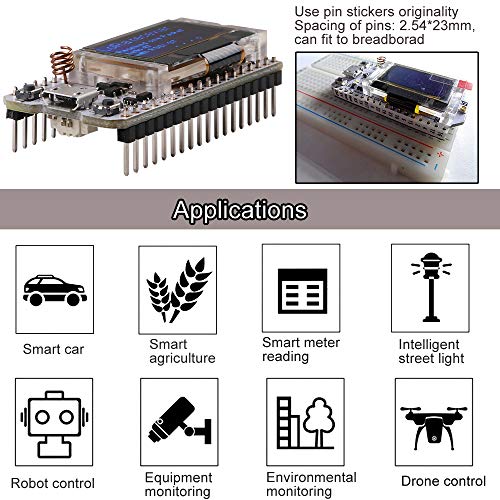

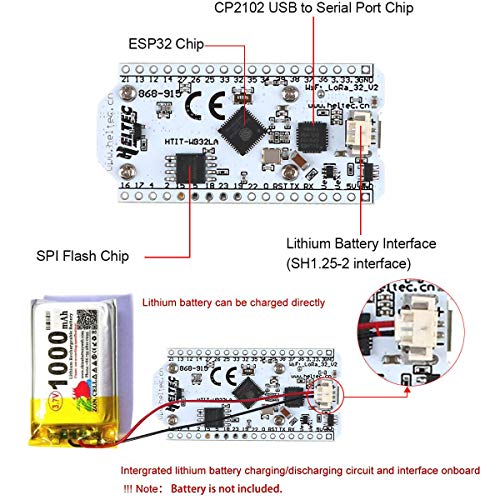

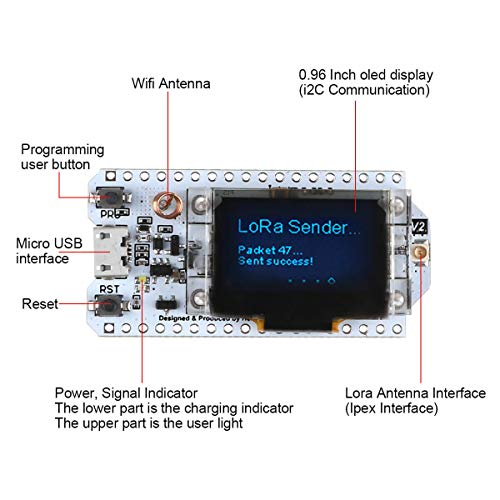

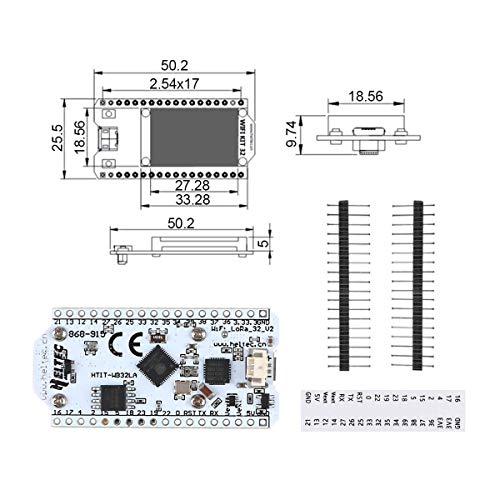

- ★Board friendly, space of pins is 2.54*23mm, fit to breadboard. 0.96-inch blue esp32 oled display, lithium battery charging circuit and interface, CP2102 USB to serial chip
Binding: Personal Computers
model number: 8541549242
Part Number: 33MKMJHOXQ57B34W2CGJ145XL

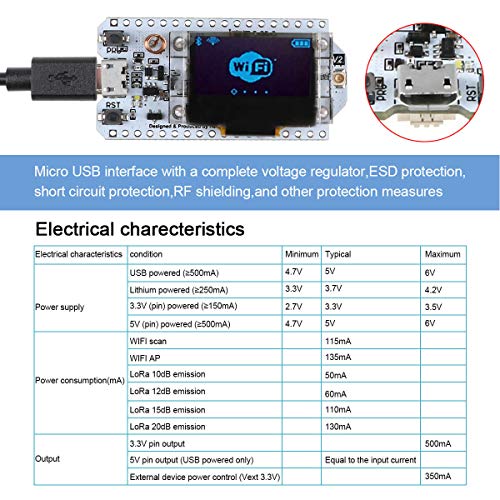

Details: Description: W I F I Kit series is the new development cost-effective networking program of our company, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / N HT40 W i-F i transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluet ooth (traditional Bluet ooth and BLE low power Bluet ooth). This product is based on the W I F I Kit 32 added SX1276 chip, that is, LoRa remote modem, 868/915MHz frequency, about -139dBm high sensitivity, +20 dBm power output, high reliability, transmission distance (measured open area communication distance 2.8Km). Onboard 32MByte Flash, W i - F i antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, the perfect support for Arduino development environment, can be very simple and fast for program verification and product development. Specification: Operating voltage: 3.3V to 7V Operating temperature range: -40 ° C to + 90 ° C Supports Sniffer, Station, softAP and W i - F i Direct modes Data rate: 150 Mbps 11n HT40,72 Mbps 11n HT20,54 Mbps 11g, 11 Mbps 11b Transmit power: 19.5 dBm 11b, 16.5 dBm 11g, 15.5 dBm 11n Receiver sensitivity up to - 139 dBm UDP continues to throughput by 135 Mbps Antenna: Connector type: ipex Band definition: 868-915MHz Standing wave ratio: ≦ 1.5 Gain: 3dBi Maximum power: 10W Input impedance: 50Ω Package Including 1 * Upgrade ESP32 Development Board with OLED 1 * 868/915MHz Antenna 1 * Pin sticker 2 * Pin headers
EAN: 0190033873006
Package Dimensions: 2.6 x 2.5 x 0.7 inches
