Brand: Dakota Digital
Color: white
Features:
- Included Displays: Speedometer, Tachometer, Oil Pressure, Water Temp, Voltmeter, Fuel Level.
- Also shown in digital message center: Odometer, Trip Odometer, Resettable Service Odometer, Clock, Hour Meter, 0-60 MPH Timer...
- Various Indicators can be displayed: Turn Signals, High Beam, Check Engine, Parking Brake, Cruise Control…
- Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometer pulse generator.

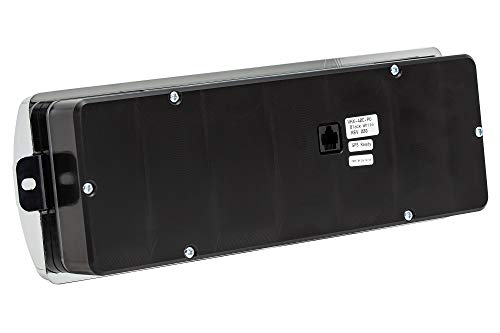

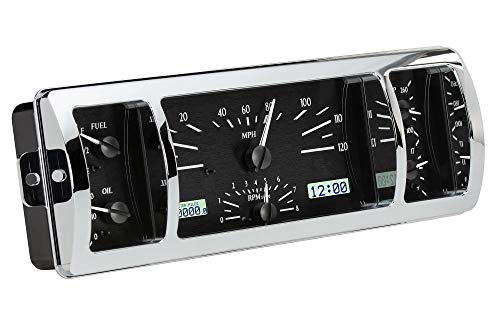

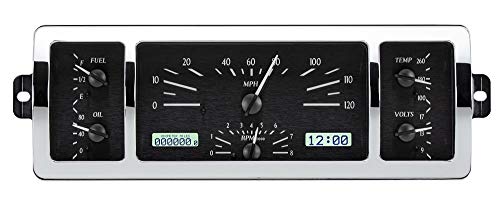

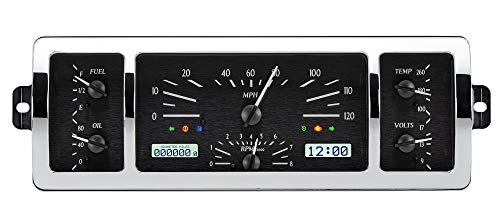

- This VHX-40C-PU-K-W (black alloy style/white backlighting) system is compatible with 1940- 46 Chevrolet pickups. This direct fit replacement kit includes a machined aluminum font bezel that’s been doused in chrome. You get six analog gauge readings augmented by a pair of LCD digital message centers. Speedometer runs to 120mph, and the supplied sensors make installation a breeze, whatever engine and transmission you choose! Minimum Opening Requirements 12.30" x 4.30"
Part Number: VHX-40C-PU-K-W
Details: This system is compatible with 1940- 46 Chevrolet pickups. This direct fit replacement kit includes a machined aluminum font bezel that’s been doused in chrome. You get six analog gauge readings augmented by a pair of LCD digital message centers. Speedometer runs to 120mph, and the supplied sensors make installation a breeze, whatever engine and transmission you choose! Minimum Opening Requirements 12.30" x 4.30"Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at their facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry. Analog Gauges: Speedometer - 0-120 MPH Tachometer - 0-8000 RPM Oil Pressure - 0-80 psi Water Temperature - 100-260ºF Fuel Level - E, 1/4, 1/2, 3/4, F Voltmeter - 9-17 VDC Digital Message Centers: Standard Displays: -Odometer (One time user settable, Million Mile) -Dual (A/B) Trip Meter (0- 9,999.9) -Clock (12 hour) Performance Meters: -0-60 MPH Timer (0- 100 kmh) -1/4 mile time -1/4 mile end speed (trap speed) -High speed recall -High RPM recall Built-In Indicators: -Turn Signals (Left/ Right) -High Beam -Check Engine -Parking Brake -Cruise Control (On/ On & Engaged when vehicle is equipped) -Gear Position (Optional GSS-2000 sensor required, sold separately) -4 x 4 (When vehicle is equipped)
EAN: 0670219142510
Package Dimensions: 24.0 x 14.0 x 7.0 inches
