Brand: OSXCAUES
Color: Blue(200PCS)
Features:
- 【Product Features】Heat Shrink Spade Connector is made of PE and tinned copper to provide insulation and conductivity. The shell is completely insulated, and the thick copper ensures a firm connection, safe and durable

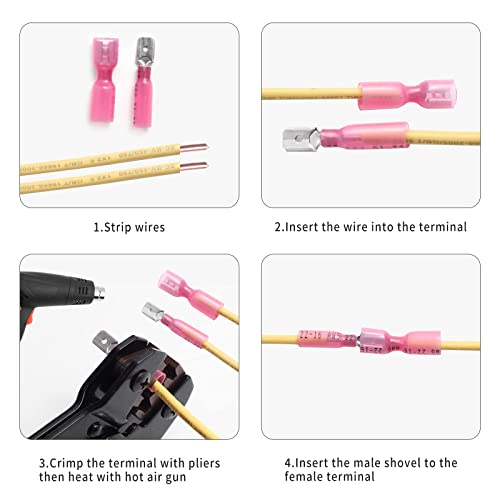

- 【Connection Method】Strip the wires first, and then insert the wires into the male and female terminals. Use a hot air gun, hair dryer or lighter to evenly heat the connector until the connector is close to the wire, and finally plug the male and female ends of the connector.
- 【Convenient and Efficient】Male and female heads are plug-in connection, loosen to disconnect, fast connection and separation. No need to connect tools and welding machine, fast connection.

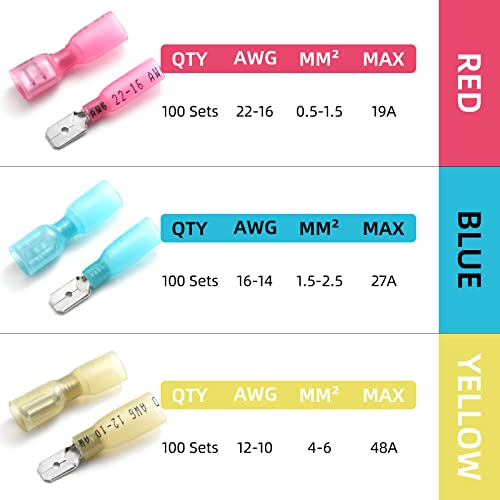

- 【Wire Range】Heat shrinkable male and female spade connectors (blue: 16-14AWG/1.5-2.5mm² 27A)

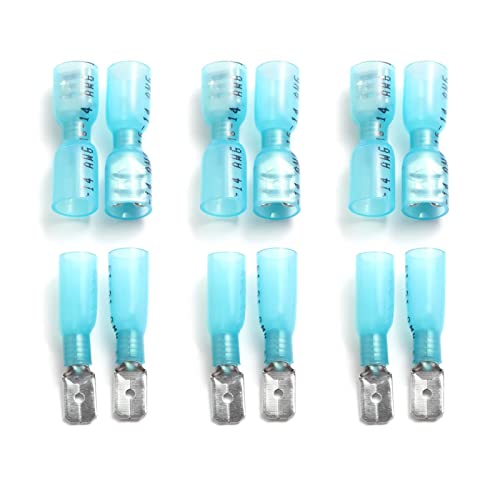

- 【Product Quantity】100 Pairs x Blue Heat Shrink Spade Connector;
Part Number: BT
Details: SpecificationShrinkage ratio 3:1Operating temperature: -55 ℃~125 ℃/-67℉ ~257℉Minimum shrinkage temperature: 80˚C/176℉Shrink temperature: 130˚C/266℉BlueWire range: 1.5-2.5mm², 16-14 AWG, Max.current = 27AProduct List100x Blue Male Heat Shrink Connector100x Blue Female Heat Shrink Connector
EAN: 0770651292252
Package Dimensions: 6.3 x 5.9 x 3.9 inches
